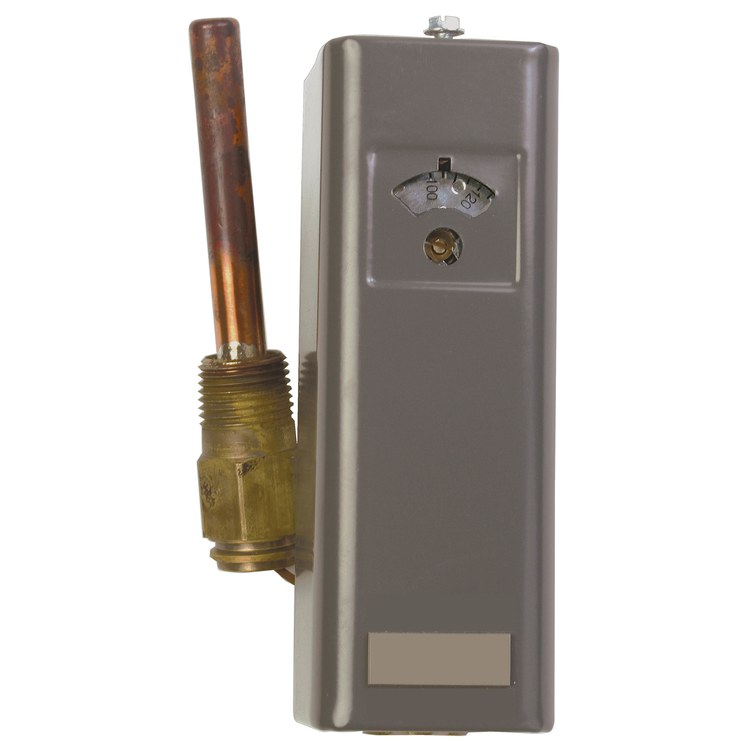

Resideo L4006A1017/U Aquastat

Aquastat High or Low Limit 100-240 Degrees Fahrenheit 5-30 Degrees Fahrenheit Horizontal/Vertical

QUANTITY

Same Day Shipping on orders placed by 4pm EST

Product Overview

Aquastat Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks and other applications where temperature control is required. Honeywell's L4006 are used in applications that utilize the existing wells.

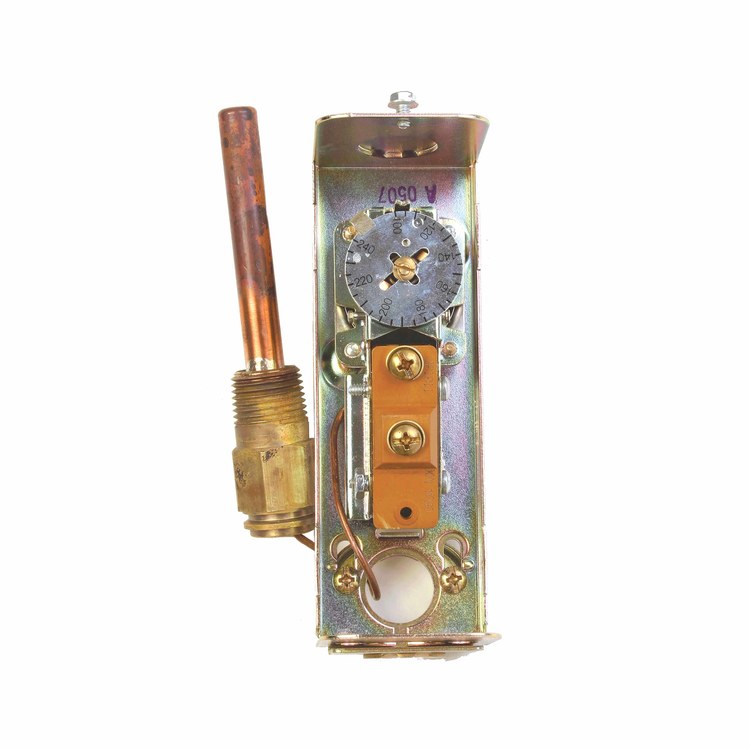

Totally enclosed Micro switch snap-acting switches operate on temperature rise to set point

Visible control point scale and external adjustments screw permit easy setting

Horizontal or vertical insertion of the sensing element

Direct or well immersion of the sensing element

Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications

TRADELINE models include heat-conductive compound

5.1 to 8 A at 120 to 240 VAC for full load

30.6 to 48 A at 120 to 240 VAC for locked rotor

Replaces L4080B, L4080D Families, L4006A1058, L4006A1827, & L4006A2015

Brand	Resideo
Product Type	High or Low Limit
Temperature	100-240DEG F
Differential Temperature	5-30DEG F
Mounting	Horizontal/Vertical
Switching Action	SPST Contacts Break on Temperature Rise
Voltage	5.1A at 240VAC
Length	2-1/8IN
Width	2IN
Height	5-5/8IN

Brand

Resideo

Product Type

High or Low Limit

Temperature

100-240DEG F

Differential Temperature

5-30DEG F

Mounting

Horizontal/Vertical

Switching Action

SPST Contacts Break on Temperature Rise

Voltage

5.1A at 240VAC

Length

2-1/8IN

Width

2IN

Height

5-5/8IN

Cross Reference

Resideo L4006A1017/U is a suggested replacement option for the identified OEM part numbers below:

OEM MANUFACTURER	OEM PART NUMBER	SUBSTITUTION TYPE^*
HONEYWELL	L4006A1058	UNIVERSAL
HONEYWELL	L4006A1827	UNIVERSAL
HONEYWELL	L4006A2015	UNIVERSAL

* DIRECT refers to a replacement option designed to the OEM specifications for best possible fitment.
* UNIVERSAL replacement options are designed as a functional equivalent and may require adapters, jumpers, switches, etc. (typically provided) in order to function as the original OEM device.

Disclaimer. All recommended replacements in the cross-reference database have been assembled from publicly available resources created by manufactures of HVAC, controls and plumbing products. Stockpile Express assumes no liability in connection with the information contained and makes no guarantees regarding the accuracy of such information. Final selection of a replacement product is the responsibility of the buyer.
