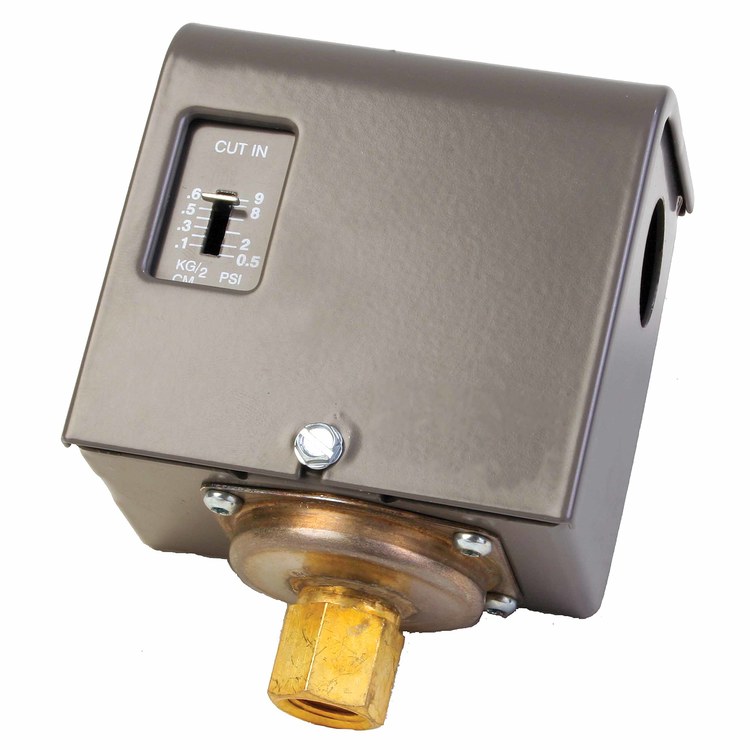

Resideo PA404A1033/U Pressure Control

Pressure Control Pressuretrol with Additive Differential 24/120/240/277 Volt 0.5-9 Pounds per Square Inch 150 Degrees Fahrenheit

QUANTITY

Same Day Shipping on orders placed by 4pm EST

Product Overview

The PA404 is a series 40 (2-wire, SPST) pressure controller for use in 24, 120, 240 or 277 volt control circuits or in self powered (millivoltage) applications.

The PA404A is a pressure actuated high limit, safety control for steam heating boilers, it breaks an electrical circuit to shut down the burner if steam pressure rises above a safe level

The PA404B is used with suspension-type unit heaters to make the fan circuit when a pressure rise indicates the presence of steam

Each model contains an SPST microns switch snap acting switch

Sensitive pressure actuated diaphragm expands or contracts with pressure variations, moving a lever mechanism which operates the snap switch

A screw on top of the case allows set point adjustments without removing the cover

Differential is adjusted by means of a dial located inside the case

Brand	Resideo
Product Type	With Additive Differential
Range	150DEG F
Differential Pressure	0.5-9PSI
Voltage	24/120/240/277V
End Connection	1/4IN Female Pipe Thread

Brand

Resideo

Product Type

With Additive Differential

Range

150DEG F

Differential Pressure

0.5-9PSI

Voltage

24/120/240/277V

End Connection

1/4IN Female Pipe Thread

Cross Reference

Resideo PA404A1033/U is a suggested replacement option for the identified OEM part numbers below:

OEM MANUFACTURER	OEM PART NUMBER	SUBSTITUTION TYPE^*
BURNHAM	80160300	UNIVERSAL
BURNHAM	PA404A1009	UNIVERSAL
WEIL MCLAIN	510-312-135	UNIVERSAL

* DIRECT refers to a replacement option designed to the OEM specifications for best possible fitment.
* UNIVERSAL replacement options are designed as a functional equivalent and may require adapters, jumpers, switches, etc. (typically provided) in order to function as the original OEM device.
