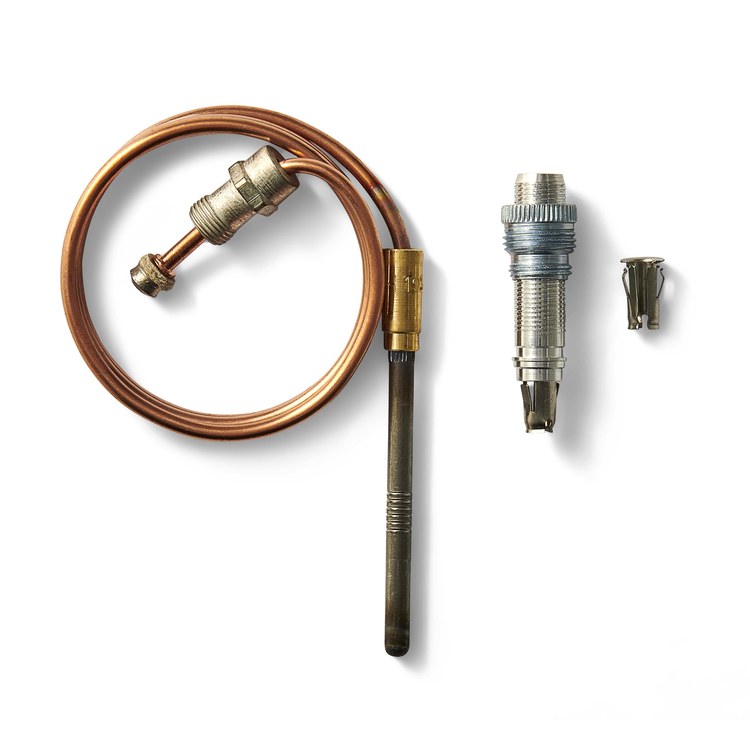

Resideo Q340A1074/U Thermocouple

Thermocouple Q340A with Adapter and Push In Clip 24 Inch 780 to 1400 Degrees Fahrenheit

QUANTITY

Same Day Shipping on orders placed by 4pm EST

Product Overview

The Q340A thermocouples sense the pilot flame on standing pilot gas-fired heating systems. The pilot flame heats the tip of the thermocouple, producing a temperature differential between it and the base to generate 30 mill volts.

Push-in clip, split nut, or adapter assembly available (depending on model) for easy pilot burner installation

Male nut connector for Pilotstat safety control power units

Available in a variety of lead length

24 in length

0.02 Ohm resistance

11/32 32-male connector nut

30 mVAC , open circuit output 26 to 32 m VAC voltage

Brand	Resideo
Product Type	With Adapter and Push In Clip
Size	24IN
Temperature	780 to 1400DEG F
Mounting	Screw-In or Clamp
Connection Details	11/32 32 Male Connector Nut
Application	Pilot Flame on Gas Fired Heating Systems

Brand

Resideo

Product Type

With Adapter and Push In Clip

Size

24IN

Temperature

780 to 1400DEG F

Mounting

Screw-In or Clamp

Connection Details

11/32 32 Male Connector Nut

Application

Pilot Flame on Gas Fired Heating Systems

Cross Reference

Resideo Q340A1074/U is a suggested replacement option for the identified OEM part numbers below:

OEM MANUFACTURER	OEM PART NUMBER	SUBSTITUTION TYPE^*
HUSKY	K16BT-24	UNIVERSAL
JOHNSON CONTROLS	K19AT-24	UNIVERSAL
ROBERTSHAW	1970-24	UNIVERSAL
ROBERTSHAW	1980-24	UNIVERSAL
WHITE RODGERS	H06E-524	UNIVERSAL

* DIRECT refers to a replacement option designed to the OEM specifications for best possible fitment.
* UNIVERSAL replacement options are designed as a functional equivalent and may require adapters, jumpers, switches, etc. (typically provided) in order to function as the original OEM device.

Disclaimer. All recommended replacements in the cross-reference database have been assembled from publicly available resources created by manufactures of HVAC, controls and plumbing products. Stockpile Express assumes no liability in connection with the information contained and makes no guarantees regarding the accuracy of such information. Final selection of a replacement product is the responsibility of the buyer.
