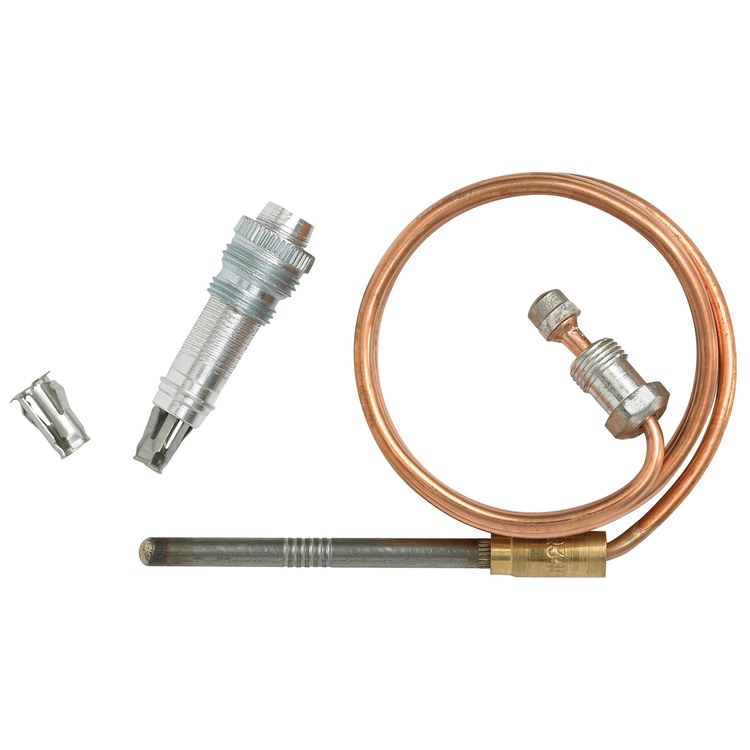

Resideo Q340A1108/UThermocouple Q340A with Universal Adapter 48 Inch 780-1400 Degrees Fahrenheit

Product Overview

The Q340A thermocouples sense the pilot flame on standing pilot gas-fired heating systems. The pilot flame heats the tip of the thermocouple, producing a temperature differential between it and the base to generate 30 mill volts.

• Push-in clip, split nut, or adapter assembly available (depending on model) for easy pilot burner installation
• Male nut connector for Pilotstat safety control power units
• Available in a variety of lead length
• 48 in length
• 0.03 Ohm resistance
• 11/32 32-male connector nut
• 30 mVAC , open circuit output 26 to 32 m VAC voltage
