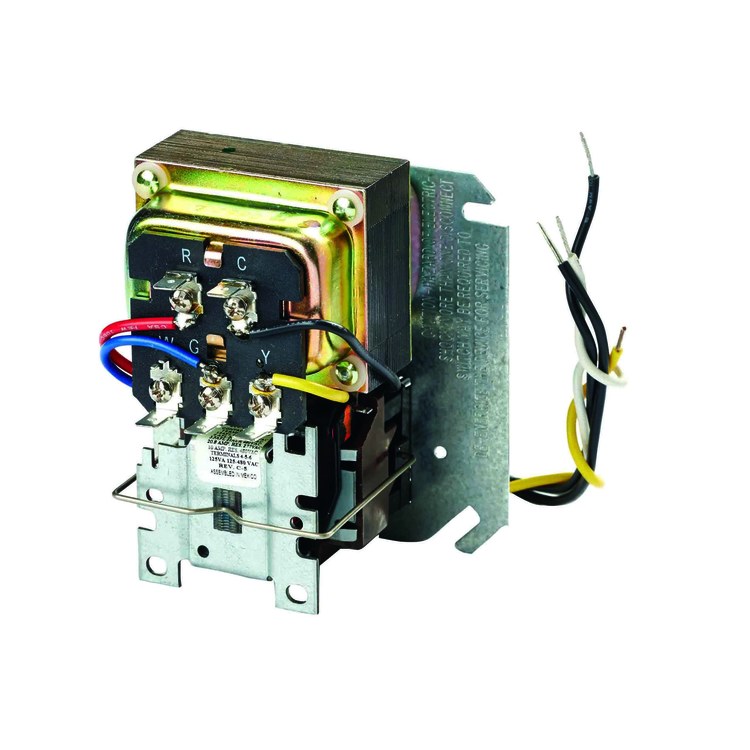

Resideo R8285A1048/U Relay

Relay Tradeline 40 VA Fan Center Control SPDT 4x4 Inch Junction Box 120 Volt

QUANTITY

Same Day Shipping on orders placed by 4pm EST

Product Overview

Provides low voltage control of line voltage fan motors and auxiliary circuits in heating, cooling, or air conditioning systems.

Low voltage terminal board provides convenient connections for thermostat and heating and cooling equipment wiring

Mounts on standard 4 x 4 in junction box

Relay is easily replaced without disturbing wiring

Brand	Resideo
Product Type	40 VA Fan Center Control SPDT
Mounting	4x4IN Junction Box
Voltage	120V
Approvals	CSA and UL
Application	Control Line Voltage Fan Motors and Auxiliary Circuits
Width	4-1/2IN
Height	4-3/16IN
Depth	2-13/16IN

Brand

Resideo

Product Type

40 VA Fan Center Control SPDT

Mounting

4x4IN Junction Box

Voltage

120V

Approvals

CSA and UL

Application

Control Line Voltage Fan Motors and Auxiliary Circuits

Width

4-1/2IN

Height

4-3/16IN

Depth

2-13/16IN

Cross Reference

Resideo R8285A1048/U is a suggested replacement option for the identified OEM part numbers below:

OEM MANUFACTURER	OEM PART NUMBER	SUBSTITUTION TYPE^*
HONEYWELL	R8285A1004	UNIVERSAL
HONEYWELL	R8285A1014	UNIVERSAL
HONEYWELL	R8325A1008	UNIVERSAL
HONEYWELL	R8325A1024	UNIVERSAL
HONEYWELL	R8325A1057	UNIVERSAL


HONEYWELL	R8325A1099	UNIVERSAL
JARD	4011FC	UNIVERSAL
WHITE RODGERS	8A95-2	UNIVERSAL
WHITE RODGERS	90-113	UNIVERSAL

View More +

* DIRECT refers to a replacement option designed to the OEM specifications for best possible fitment.
* UNIVERSAL replacement options are designed as a functional equivalent and may require adapters, jumpers, switches, etc. (typically provided) in order to function as the original OEM device.

Disclaimer. All recommended replacements in the cross-reference database have been assembled from publicly available resources created by manufactures of HVAC, controls and plumbing products. Stockpile Express assumes no liability in connection with the information contained and makes no guarantees regarding the accuracy of such information. Final selection of a replacement product is the responsibility of the buyer.
