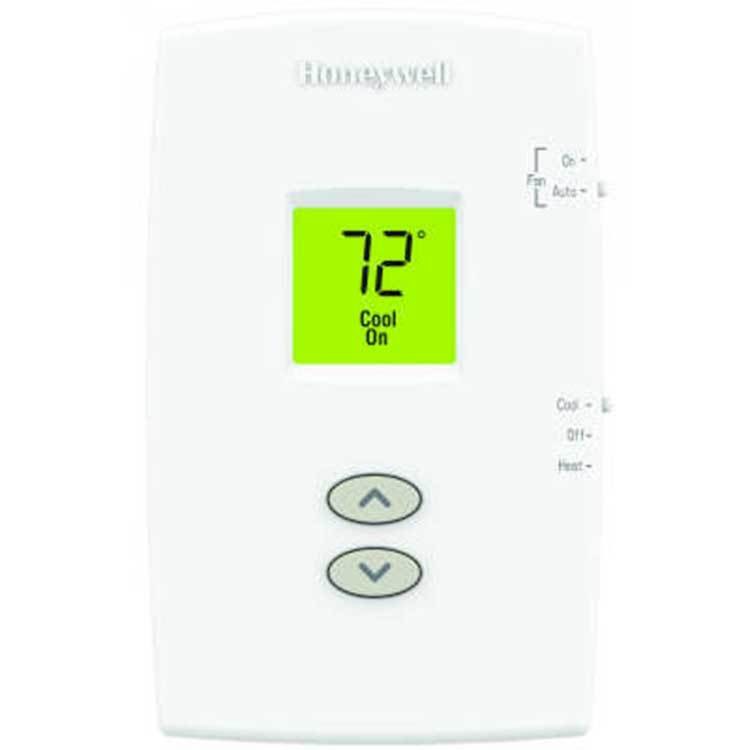

Honeywell Home TH1110DV1009/UHoneywell Home PRO 1000 Vertical Non-Programmable Thermostat

Product Overview

Traditional, Easy-to-Use Thermostat

The inexpensive PRO 1000 Vertical Non-Programmable Thermostat features a backlit digital display and the reliable basic operation of the slide switch to select heat, cool, or fan.

• 1 Heat/1 Cool Conventional Systems and Heat Pumps without Auxiliary Heat
• Setting temperature range: 40 to 90 degrees F
• Vertical mounting
• Stages: 1 Heat/1 Cool
• Cycles: Heating 2-6 CPH, Cooling 2-6 CPH
• Terminal designations: R, RC, C, W, Y, G, O, and B
• Switch positions (system): Heat-Off-Cool
• Switch positions (fan): Auto-On
• Manual changeover
• Dual powered: hardwire and battery-backup
• Color: Premier White

Product Details

Brand	Honeywell Home
Product Type	Non-Programmable 750 MV
Voltage	24V
Stages	1 Heat/1 Cool
Finish	White
Temperature	40-90/50-99DEG F
Amperage	0.02-1.0AMP
Battery Backup	Yes
Application	Conventional Systems and Heat Pumps without auxiliary Heat
Special Options	Dual Powered, Fan Control
Mounting	Vertical
Width	2-7/8IN
Height	4-11/16IN
Depth	1-1/8IN
