Refrigeration Press 30310606001113/8" Copper 90-Degree Long-Radius Elbow Press x Press

Product Overview

Maintain Refrigerant Flow and Minimizes Pressure Drop.

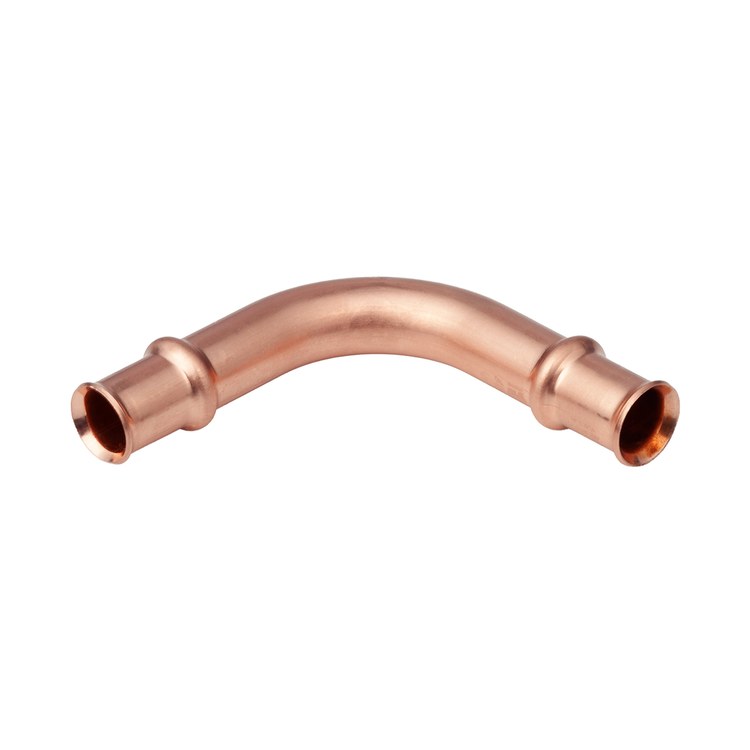

This 90-degree long-radius copper elbow is made of refrigerant-grade copper per ASTM-B75 or ASTM-B743. It features 3/8" press x press end connections.

This RLS fitting is made in a long radius. This allows for greater efficiency without the pressure loss that comes with moving refrigerant quickly around a tighter bend. It also means that the contractor can avoid adding fittings to the copper piping to compensate for the loss of velocity that would come with short radius fittings.

Approved for use with the following refrigerants: R-134A, R-404A, R-407A, R-407C, R-407F, R-407H, R-410A, R-417A, R-421A, R-422B, R-422D, R-424A, R-427A, R-434A, R-437A, R-438A ,R-448A, R-449A,R-450A, R-452A, R-453A, R-456A, R-507A, R-513A, R-513B, R-718, Ethylene Glycol, R-22.

• Eliminates brazing process using flame-free press tool for safer work environment
• Fast and reliable connections to save time and money
• Maximum Rated Pressure (MRP): 700 psi
• Continuous Operating Temperature: 250 degrees F
• O-Ring Material: HNBR
• Made in the USA

Product Details

Brand	Refrigeration Press
Bend Angle	90DEG
Product Type	Long-Radius
Size	3/8IN
Material	Copper
End Connection	Press x Press
Part Number	3031060600111
Application	Flame-Free Refrigerant Fittings
