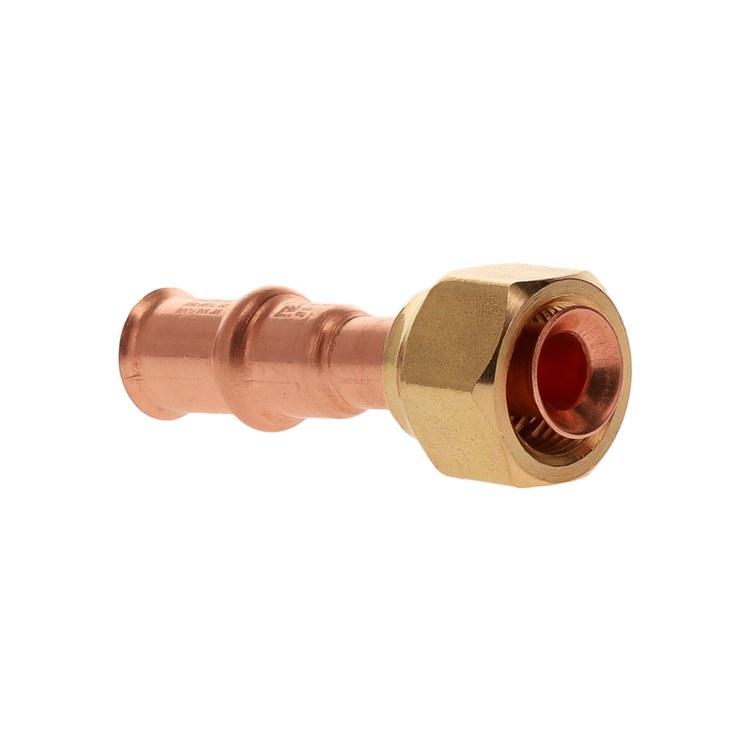

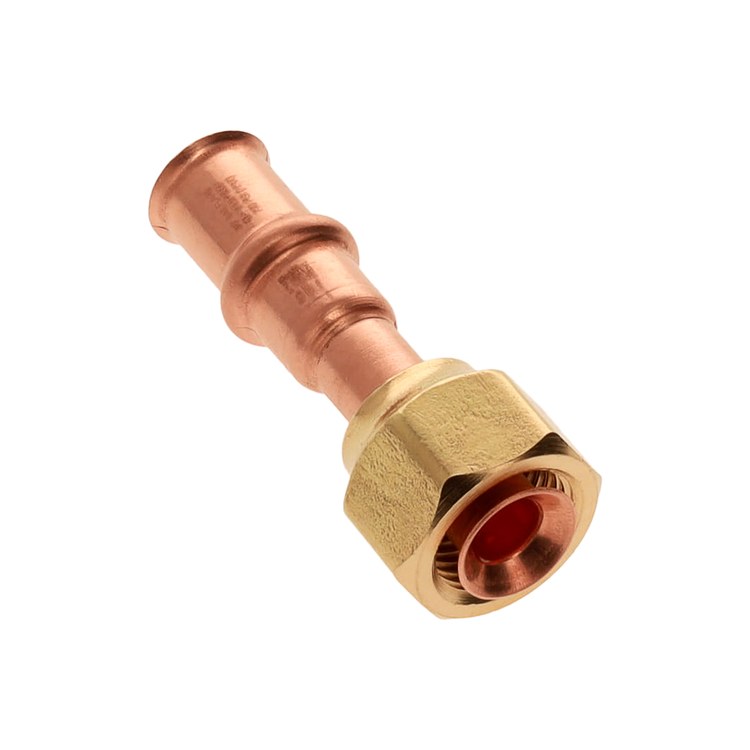

Refrigeration Press 32910600001113/8" Copper Adapter Press x SAE Flare for Flame-Free Refrigerant Fittings

Product Overview

Ideal for High-Pressure Applications.

RLS copper pressed fittings are designed specifically for use with refrigerant. These fittings are also annealed so that when they are pressed, the joint hardens into place. This 3/8" adapter is made of refrigerant-grade copper per ASTM-B75 or ASTM-B743. It features press x SAE flare end connections.

Approved for use with the following refrigerants: R-134A, R-404A, R-407A, R-407C, R-407F, R-407H, R-410A, R-417A, R-421A, R-422B, R-422D, R-424A, R-427A, R-434A, R-437A, R-438A,R-448A, R-449A,R-450A, R-452A, R-453A, R-456A, R-507A, R-513A, R-513B, R-718, Ethylene Glycol, R-22.

• Eliminates brazing process using flame-free press tool for safer work environment
• Fast and reliable connections to save time and money
• Maximum Rated Pressure (MRP): 700 psi
• Continuous Operating Temperature: 250 degrees F
• O-Ring Material: HNBR
• Made in the USA

Product Details

Brand	Refrigeration Press
Product Type	Press x SAE Flare Adapter
Size	3/8IN
Material	Copper
Part Number	3291060000111
Used on	Flame-Free Refrigerant Fittings
