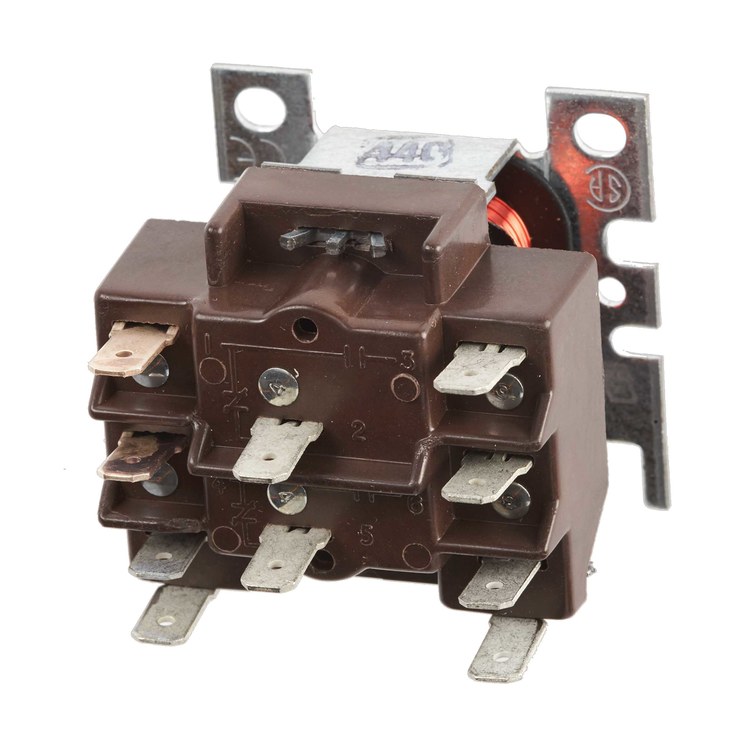

Resideo R8222V1003/U Relay

Relay DPDT 1 P/1 P Duty Quick Connect 24 Voltage Alternating Current 12 Amp

QUANTITY

Same Day Shipping on orders placed by 4pm EST

Product Overview

Provide heavy duty switching for refrigeration and air conditioning equipment, appliances, vending machines and similar applications.

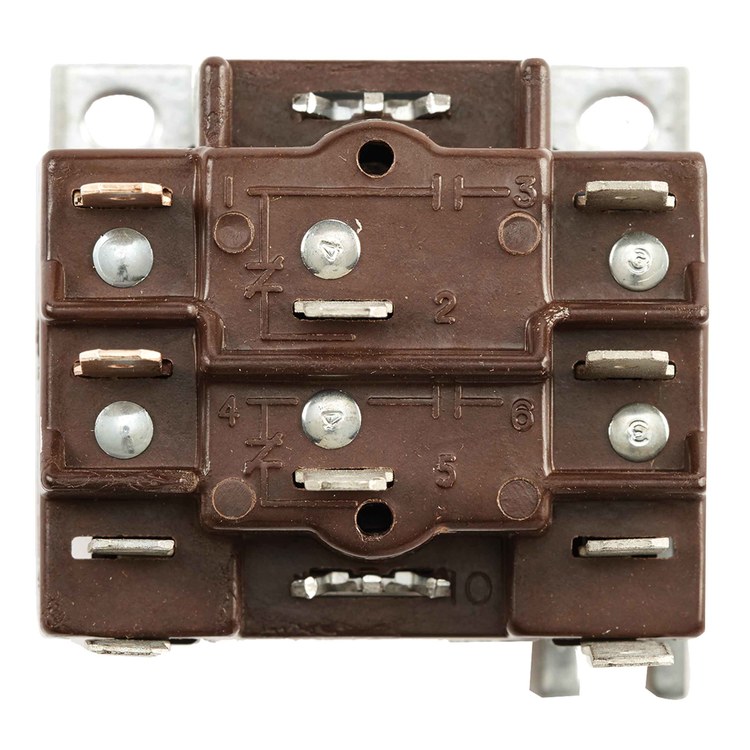

Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation

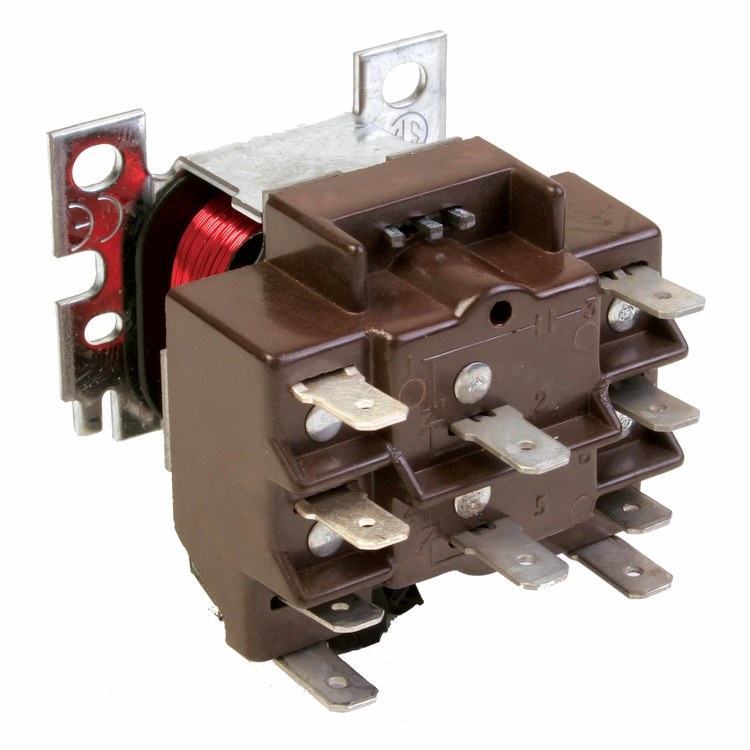

Open coil assures cooler operation

Laminated magnet construction for high efficiency

Base designed for easy replacement of competitive relays

Plug compatible with Steveco 90-340 and Mars 90340

3 A at 480 VAC/12 A at 120 VAC AFL, 18 A at 480 VAC/60 A at 120 VAC ALR, 10 A at 480 VAC/20.8 A at 277 VAC resistive

Brand	Resideo
Product Type	DPDT 1 P/1 P Duty
Mounting	Quick Connect
Voltage	24VAC
Amperage	12AMP
Temperature	-20 to 155DEG F
Approvals	CSA and UL
Application	Compressor-run Air Conditioning and Heat Pump Systems
Width	2-5/32IN
Height	1-7/8IN
Depth	2-3/38IN

Brand

Resideo

Product Type

DPDT 1 P/1 P Duty

Mounting

Quick Connect

Voltage

24VAC

Amperage

12AMP

Temperature

-20 to 155DEG F

Approvals

CSA and UL

Application

Compressor-run Air Conditioning and Heat Pump Systems

Width

2-5/32IN

Height

1-7/8IN

Depth

2-3/38IN

Cross Reference

Resideo R8222V1003/U is a suggested replacement option for the identified OEM part numbers below:

OEM MANUFACTURER	OEM PART NUMBER	SUBSTITUTION TYPE^*
BURNHAM	80160135	DIRECT

* DIRECT refers to a replacement option designed to the OEM specifications for best possible fitment.
* UNIVERSAL replacement options are designed as a functional equivalent and may require adapters, jumpers, switches, etc. (typically provided) in order to function as the original OEM device.

Disclaimer. All recommended replacements in the cross-reference database have been assembled from publicly available resources created by manufactures of HVAC, controls and plumbing products. Stockpile Express assumes no liability in connection with the information contained and makes no guarantees regarding the accuracy of such information. Final selection of a replacement product is the responsibility of the buyer.
