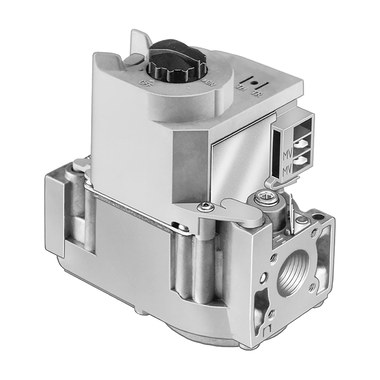

Resideo VR8205H1003/U
Gas Valve VR8205 Direct Ignition 1/2 Inch NPT Slow Open 1/2 Pounds per Square Inch 24 VAC 1 Stage 150K BTU Natural Gas for Residential Gas Control System
Sign In for price In Stock
QUANTITY
Same Day Shipping on orders placed by 4pm EST
Product Overview
Combination gas controls for use with hot surface/direct spark systems in 24 VAC, gas-fired appliances with capacities from 30 to 415 cfh.
- Controls include manual valve, two automatic operators and pressure regulator
- Provide two automatic valves
- Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
- Diaphragm operated second automatic valve opens under control of the regulator, closes if gas or power supply is interrupted
- Meets codes requiring dual safety shutoff
- Natural to LP and LP to natural conversion kits available for standard and slow opening gas valves
- On/off lighting sequence
- All adjustments, wiring connections and pilot outlet are accessible from top of control
- Straight-through body pattern
- 0 to 90 deg in any direction from the upright position of the gas control knob mounting
- 3-1/2 in WC pressure regulator setting
- Slow opening gas valve
Product Details
| Brand | Resideo |
|---|---|
| Product Type | Direct Ignition |
| Size | 1/2IN |
| End Connection | NPT |
| Port Type | Slow Open |
| Pressure | 1/2PSI |
| Voltage | 24VAC |
| Number of Stages | 1 |
| BTU | 150K BTU |
| Temperature | 0 To 175DEG F |
| Fuel | Natural Gas |
| Application | Residential Gas Control System |
| Width | 4-1/8IN |
| Height | 4-15/16IN |
| Depth | 2-11/16IN |
Cross Reference
Resideo VR8205H1003/U is a suggested replacement option for the identified OEM part numbers below:
| OEM MANUFACTURER | OEM PART NUMBER | SUBSTITUTION TYPE* |
|---|---|---|
| HONEYWELL | V8205H1002 | DIRECT |
| HONEYWELL | VR8205H8008 | DIRECT |
| HONEYWELL | VR8205H8016/P | DIRECT |
| HONEYWELL | VR8205H8024 | DIRECT |
| HONEYWELL | VR8205H8024/P | DIRECT |
| HONEYWELL | VR8205K2924 | DIRECT |
| HONEYWELL | VR8205K2932 | DIRECT |
| HONEYWELL | VR8305H4013 | DIRECT |
| HONEYWELL | VR8305H4039 | DIRECT |
* DIRECT refers to a replacement option designed to the OEM specifications for best possible fitment.
* UNIVERSAL replacement options are designed as a functional equivalent and may require adapters, jumpers, switches, etc. (typically provided) in order to function as the original OEM device.
Disclaimer. All recommended replacements in the cross-reference database have been assembled from publicly available resources created by manufactures of HVAC, controls and plumbing products. Stockpile Express assumes no liability in connection with the information contained and makes no guarantees regarding the accuracy of such information. Final selection of a replacement product is the responsibility of the buyer.
