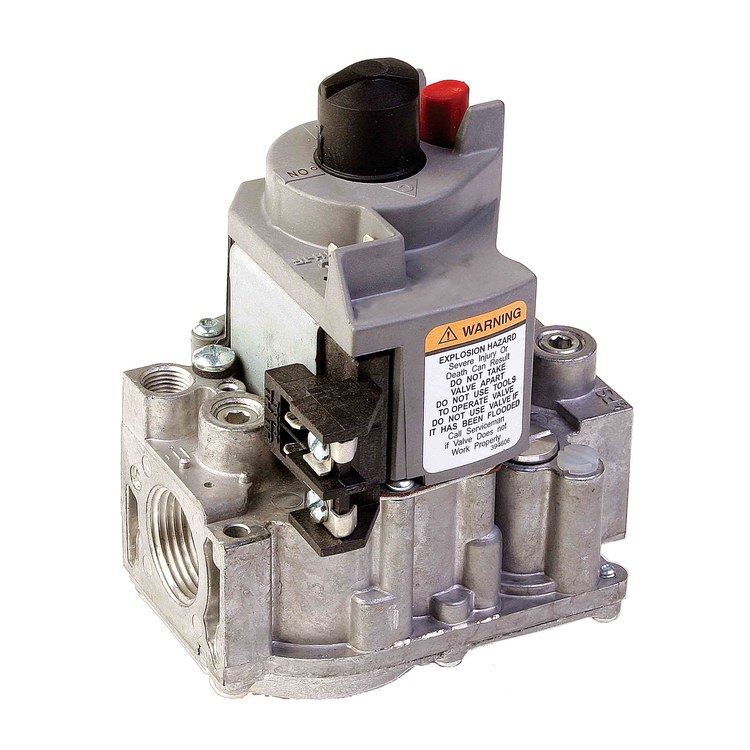

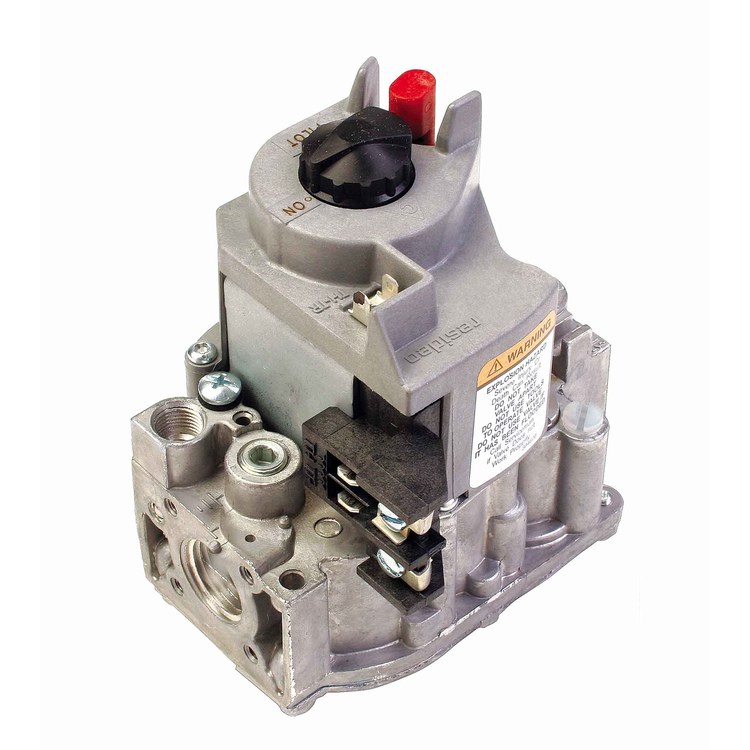

Resideo VR8300A3518/U Gas Valve

Gas Valve VR8300 Standing Pilot 1/2 x 3/4 Inch NPT Standard Open 1/2 Pounds per Square Inch 24 VAC 1 Stage 190K BTU Natural Gas

QUANTITY

Same Day Shipping on orders placed by 4pm EST

Product Overview

Combination gas control for use in 24 VAC gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.

Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment

Compact design

Provides two automatic valves

Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends

Diaphragm operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted

Meets codes requiring dual safety shutoff

Natural to LP and LP to natural conversion kits available for standard and slow opening gas valves

All adjustments, wiring connections and pilot outlet are accessible from top of control

Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure

Compatible with ECO connector

LITE-RITE (Off-Pilot-On) lighting sequence

Straight-through body pattern

0 to 90 deg in any direction from the upright position of the gas control knob mounting

3-1/2 in WC pressure regulator setting

Standard opening gas vavle

Brand	Resideo
Product Type	Standing Pilot
Size	1/2x3/4IN
End Connection	NPT
Port Type	Standard Open
Pressure	1/2PSI
Voltage	24VAC
Number of Stages	1
BTU	190K BTU
Temperature	0 To 175DEG F
Fuel	Natural Gas
Width	4-1/16IN
Height	5-3/8IN
Depth	2-11/16IN

Brand

Resideo

Product Type

Standing Pilot

Size

1/2x3/4IN

End Connection

NPT

Port Type

Standard Open

Pressure

1/2PSI

Voltage

24VAC

Number of Stages

BTU

190K BTU

Temperature

0 To 175DEG F

Fuel

Natural Gas

Width

4-1/16IN

Height

5-3/8IN

Depth

2-11/16IN

Cross Reference

Resideo VR8300A3518/U is a suggested replacement option for the identified OEM part numbers below:

OEM MANUFACTURER	OEM PART NUMBER	SUBSTITUTION TYPE^*
HONEYWELL	V800A1476/G	DIRECT
HONEYWELL	V800A7010/H	DIRECT
ROBERTSHAW	720-406	DIRECT
WHITERODGERS	36C03-433	DIRECT

* DIRECT refers to a replacement option designed to the OEM specifications for best possible fitment.
* UNIVERSAL replacement options are designed as a functional equivalent and may require adapters, jumpers, switches, etc. (typically provided) in order to function as the original OEM device.

Disclaimer. All recommended replacements in the cross-reference database have been assembled from publicly available resources created by manufactures of HVAC, controls and plumbing products. Stockpile Express assumes no liability in connection with the information contained and makes no guarantees regarding the accuracy of such information. Final selection of a replacement product is the responsibility of the buyer.
