  1. Gas Valves
  Gas Valve

Enlarge

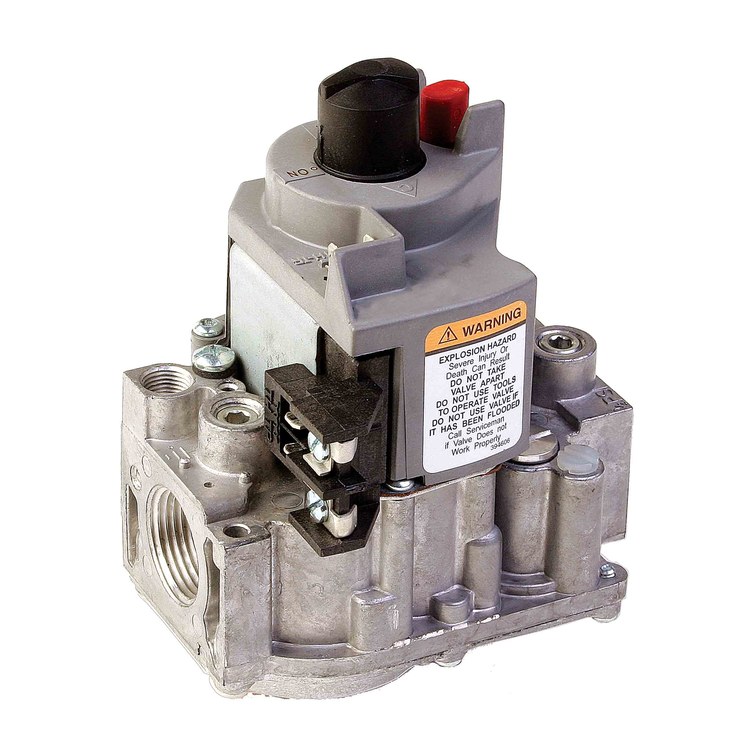

Resideo VR8300A4508/U

Resideo

Resideo VR8300A4508/UGas Valve VR8300 Standing Pilot 3/4 Inch NPT Standard Opening 1/2 Pounds per Square Inch 24 VAC 1 Stage 200K BTU Natural Gas for Residential Gas Control System

Sign In for price Out of stock

QUANTITY

–+

trackSame Day Shipping on orders placed by 4pm EST

Product Overview


Combination gas control for use in 24 VAC gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.

  • Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment
  • Compact design
  • Provides two automatic valves
  • Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
  • Diaphragm operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted
  • Meets codes requiring dual safety shutoff
  • Natural to LP and LP to natural conversion kits available for standard and slow opening gas valves
  • All adjustments, wiring connections and pilot outlet are accessible from top of control
  • Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
  • Compatible with ECO connector
  • LITE-RITE (Off-Pilot-On) lighting sequence
  • Body pattern: straight-through with flange
  • 0 to 90 deg in any direction from the upright position of the gas control knob mounting
  • 3-1/2 in WC pressure regulator setting
  • Standard opening gas vavle

Product Details

BrandResideo
Product TypeStanding Pilot
Size3/4IN
End ConnectionNPT
Port TypeStandard Opening
Pressure1/2PSI
Voltage24VAC
Number of Stages1
BTU200K BTU
Temperature0 To 175DEG F
FuelNatural Gas
ApplicationResidential Gas Control System
Width4-1/16IN
Height5-3/8IN
Depth2-11/16IN

Cross Reference

Resideo VR8300A4508/U is a suggested replacement option for the identified OEM part numbers below:

OEM MANUFACTURER OEM PART NUMBER SUBSTITUTION TYPE*
HONEYWELL V800A1591 DIRECT
HONEYWELL V800H1099 DIRECT
HONEYWELL V800H7013 DIRECT
HONEYWELL V801D1000 DIRECT
HONEYWELL V801D1018 DIRECT
HONEYWELL V804A1023 DIRECT
HONEYWELL V80A1004 DIRECT
HONEYWELL V80A1012 DIRECT
HONEYWELL V80A1020 DIRECT
HONEYWELL V80A1070 DIRECT
HONEYWELL V80A1076 DIRECT
HONEYWELL V80A1079 DIRECT
HONEYWELL V80A1095 DIRECT
HONEYWELL V80A10DJ4X DIRECT
HONEYWELL V80A10DJ5X DIRECT
HONEYWELL V80A1103 DIRECT
HONEYWELL V80A1111 DIRECT
HONEYWELL V80A1178 DIRECT
HONEYWELL V80A1210 DIRECT
HONEYWELL V80A1228 DIRECT
HONEYWELL V80A1285 DIRECT
HONEYWELL V80A1293 DIRECT
HONEYWELL V80A1400 DIRECT
HONEYWELL V80A1418 DIRECT
HONEYWELL V80A6DJ3X DIRECT
HONEYWELL V80A6DJ4X DIRECT
HONEYWELL V80A6DJ5X DIRECT
HONEYWELL V80A7DJ4X DIRECT
HONEYWELL V80A8DJ3X DIRECT
HONEYWELL V80A8DJ4X DIRECT
HONEYWELL V80A8DJ5X DIRECT
HONEYWELL V80A9DJ4X DIRECT
HONEYWELL V80A9DJ5X DIRECT
HONEYWELL V80B1002 DIRECT
HONEYWELL V80B1003 DIRECT
HONEYWELL V80B1010 DIRECT
HONEYWELL V80B1011 DIRECT
HONEYWELL V80B1028 DIRECT
HONEYWELL V80B1029 DIRECT
HONEYWELL V80B1044 DIRECT
HONEYWELL V80B1045 DIRECT
HONEYWELL V80B1060 DIRECT
HONEYWELL V80B1069 DIRECT
HONEYWELL V80B1077 DIRECT
HONEYWELL V80B1085 DIRECT
HONEYWELL V80B1101 DIRECT
HONEYWELL V80B1102 DIRECT
HONEYWELL V80B1110 DIRECT
HONEYWELL V80B1119 DIRECT
HONEYWELL V80B1135 DIRECT
HONEYWELL V80B1136 DIRECT
HONEYWELL V80B1143 DIRECT
HONEYWELL V80B1144 DIRECT
HONEYWELL V80B1150 DIRECT
HONEYWELL V80B1151 DIRECT
HONEYWELL V80B1168 DIRECT
HONEYWELL V80B1169 DIRECT
HONEYWELL V80B1176 DIRECT
HONEYWELL V80B1184 DIRECT
HONEYWELL V80B1200 DIRECT
HONEYWELL V80B1218 DIRECT
HONEYWELL V80B1226 DIRECT
HONEYWELL V80B1DJ3X DIRECT
HONEYWELL V80B1DJ4X DIRECT
HONEYWELL V80B1DJ5X DIRECT
HONEYWELL V80B2DJ4X DIRECT
HONEYWELL V80B4DJ3X DIRECT
HONEYWELL V80B4DJ4X DIRECT
HONEYWELL V80B4DJ5X DIRECT
HONEYWELL V80B5DJ4X DIRECT
HONEYWELL V80B5DJ5X DIRECT
HONEYWELL V80C1000 DIRECT
HONEYWELL V80C1002 DIRECT
HONEYWELL V80C1018 DIRECT
HONEYWELL V80C1026 DIRECT
HONEYWELL V80C1059 DIRECT
HONEYWELL V80C1067 DIRECT
HONEYWELL V80C1075 DIRECT
HONEYWELL V80C1083 DIRECT
HONEYWELL V80C1DJ3X DIRECT
HONEYWELL V80C1DJ4X DIRECT
HONEYWELL V80C1DJ5X DIRECT
HONEYWELL V80C2DJ4X DIRECT
HONEYWELL V80C2DJ5X DIRECT
HONEYWELL V80C3DJ5X DIRECT
HONEYWELL V80C3DJ6X DIRECT
HONEYWELL V80G1001 DIRECT
HONEYWELL V80G1016 DIRECT
HONEYWELL V80G1019 DIRECT
HONEYWELL V80G1DJ3X DIRECT
HONEYWELL V80G1DJ4X DIRECT
HONEYWELL V80X1001 DIRECT
HONEYWELL V80X1008 DIRECT
HONEYWELL V80X1016 DIRECT
HONEYWELL V80X1019 DIRECT
HONEYWELL V80X1024 DIRECT
HONEYWELL V80X1027 DIRECT
HONEYWELL V80X1032 DIRECT
HONEYWELL V80X1035 DIRECT
HONEYWELL V80X1040 DIRECT
HONEYWELL V80X1043 DIRECT
HONEYWELL V80X1050 DIRECT
HONEYWELL V80X1057 DIRECT
HONEYWELL V80X1065 DIRECT
HONEYWELL V80X1068 DIRECT
HONEYWELL V80X1081 DIRECT
HONEYWELL V80X1084 DIRECT
HONEYWELL V80X1092 DIRECT
HONEYWELL V80X1099 DIRECT
HONEYWELL V80XA14DJ4X DIRECT
HONEYWELL V80XA15DJ4X DIRECT
HONEYWELL V81A1002 DIRECT
HONEYWELL V81A1003 DIRECT
HONEYWELL V81A1011 DIRECT
HONEYWELL V81A1036 DIRECT
HONEYWELL V81A1037 DIRECT
HONEYWELL V81A1044 DIRECT
HONEYWELL V81A1045 DIRECT
HONEYWELL V81A1051 DIRECT
HONEYWELL V81A1052 DIRECT
HONEYWELL V81A1060 DIRECT
HONEYWELL V81A1069 DIRECT
HONEYWELL V81A1077 DIRECT
HONEYWELL V81A1078 DIRECT
HONEYWELL V81A1093 DIRECT
HONEYWELL V81A1094 DIRECT
HONEYWELL V81A1110 DIRECT
HONEYWELL V81A1119 DIRECT
HONEYWELL V81A1127 DIRECT
HONEYWELL V81A1128 DIRECT
HONEYWELL V81A1135 DIRECT
HONEYWELL V81A1136 DIRECT
HONEYWELL V81A1150 DIRECT
HONEYWELL V81A1151 DIRECT
HONEYWELL V81A1168 DIRECT
HONEYWELL V81A1184 DIRECT
HONEYWELL V81A1192 DIRECT
HONEYWELL V81A1359 DIRECT
HONEYWELL V81A1DJ3X DIRECT
HONEYWELL V81A1DJ4X DIRECT
HONEYWELL V81A1DJ5X DIRECT
HONEYWELL V81A22DJ3X DIRECT
HONEYWELL V81A22DJ5X DIRECT
HONEYWELL V81A23DJ4X DIRECT
HONEYWELL V81A23DJ5X DIRECT
HONEYWELL V81A24DJ4X DIRECT
HONEYWELL V81A24DJ5X DIRECT
HONEYWELL V81A25DJ4 DIRECT
HONEYWELL V81A25DJ5 DIRECT
HONEYWELL V81A26DH4 DIRECT
HONEYWELL V81A26DJ4 DIRECT
HONEYWELL V81A26DJ6 DIRECT
HONEYWELL V81A27DJ4 DIRECT
HONEYWELL V81A30DJ4 DIRECT
HONEYWELL V81A30DJ5 DIRECT
HONEYWELL V81A30DJ6 DIRECT
HONEYWELL V81A31DJ4 DIRECT
HONEYWELL V81A3DJ4X DIRECT
HONEYWELL V81A3DJ5X DIRECT
HONEYWELL V81A4DJ4X DIRECT
HONEYWELL V81A4DJ5X DIRECT
HONEYWELL V81A6DH4 DIRECT
HONEYWELL V81A6DJ4 DIRECT
HONEYWELL V81A8DJ4 DIRECT
HONEYWELL V81B1019 DIRECT
HONEYWELL V81B1076 DIRECT
HONEYWELL V81B1092 DIRECT
HONEYWELL V81B10DJ5 DIRECT
HONEYWELL V81B1DH5 DIRECT
HONEYWELL V81B1DJ5 DIRECT
HONEYWELL V81B9DH5 DIRECT
HONEYWELL V81B9DJ5 DIRECT
HONEYWELL V81C1025 DIRECT
HONEYWELL V81C1DJ5 DIRECT
HONEYWELL V81D1023 DIRECT
HONEYWELL V81D1025 DIRECT
HONEYWELL V81D1041 DIRECT
HONEYWELL V81D1049 DIRECT
HONEYWELL V81D1106 DIRECT
HONEYWELL V81D1108 DIRECT
HONEYWELL V81D1130 DIRECT
HONEYWELL V81D1132 DIRECT
HONEYWELL V81D1140 DIRECT
HONEYWELL V81D1163 DIRECT
HONEYWELL V81D1165 DIRECT
HONEYWELL V81D1197 DIRECT
HONEYWELL V81D1320 DIRECT
HONEYWELL V81D1DJ5 DIRECT
HONEYWELL V81D2DJ5 DIRECT
HONEYWELL V81D3DJ4 DIRECT
HONEYWELL V81D4DJ4 DIRECT
HONEYWELL V81D5DJ5 DIRECT
HONEYWELL V81D6DJ4 DIRECT
HONEYWELL V81D7DJ5 DIRECT
HONEYWELL V81E1012 DIRECT
HONEYWELL V81E1016 DIRECT
HONEYWELL V81E1032 DIRECT
HONEYWELL V81E1038 DIRECT
HONEYWELL V81E1073 DIRECT
HONEYWELL V81E1079 DIRECT
HONEYWELL V81E1111 DIRECT
HONEYWELL V81E1137 DIRECT
HONEYWELL V81E1152 DIRECT
HONEYWELL V81E1202 DIRECT
HONEYWELL V81E1DJ5X DIRECT
HONEYWELL V81E2DJ5X DIRECT
HONEYWELL V81E4DJ4X DIRECT
HONEYWELL V81F1010 DIRECT
HONEYWELL V81F1044 DIRECT
HONEYWELL V81G1000 DIRECT
HONEYWELL V81G1006 DIRECT
HONEYWELL V81G1014 DIRECT
HONEYWELL V81G1030 DIRECT
HONEYWELL V81G1034 DIRECT
HONEYWELL V81G10DJ4 DIRECT
HONEYWELL V81G6DJ4 DIRECT
HONEYWELL V81G9DJ4 DIRECT
HONEYWELL V81K1019 DIRECT
HONEYWELL V81K1035 DIRECT
HONEYWELL V81K1068 DIRECT
HONEYWELL V81K1DJ5X DIRECT
HONEYWELL V81K2DJ4 DIRECT
HONEYWELL V81K3DJ5 DIRECT
HONEYWELL V81L1017 DIRECT
HONEYWELL V81L1018 DIRECT
HONEYWELL V81L1033 DIRECT
HONEYWELL V81L1034 DIRECT
HONEYWELL V81L1066 DIRECT
HONEYWELL V81L1DJ5 DIRECT
HONEYWELL V81L2DJ4 DIRECT
HONEYWELL V81M1017 DIRECT
HONEYWELL V81M1041 DIRECT
HONEYWELL V81X1000 DIRECT
HONEYWELL V81X1006 DIRECT
HONEYWELL V81X1008 DIRECT
HONEYWELL V81X1014 DIRECT
HONEYWELL V81X1016 DIRECT
HONEYWELL V81X1018 DIRECT
HONEYWELL V81X1032 DIRECT
HONEYWELL V81X1034 DIRECT
HONEYWELL V81X1057 DIRECT
HONEYWELL V81X1059 DIRECT
HONEYWELL V81X1089 DIRECT
HONEYWELL V81X1097 DIRECT
HONEYWELL V81XA32DJ4 DIRECT
HONEYWELL V81XA32DJ5 DIRECT
HONEYWELL V8202A1026 DIRECT
HONEYWELL V8202A1034 DIRECT
HONEYWELL V8202A1042 DIRECT
HONEYWELL V8202A1059 DIRECT
HONEYWELL VR800A1004 DIRECT
HONEYWELL VR800A1046 DIRECT
HONEYWELL VR800A1053 DIRECT
HONEYWELL VR800A1061 DIRECT
HONEYWELL VR800A1079 DIRECT
HONEYWELL VR800A1087 DIRECT
HONEYWELL VR800A1103 DIRECT
HONEYWELL VR800A1111 DIRECT
HONEYWELL VR800A1127 DIRECT
HONEYWELL VR800A1202 DIRECT
HONEYWELL VR800A1236 DIRECT
HONEYWELL VR800A1244 DIRECT
HONEYWELL VR800A1269 DIRECT
HONEYWELL VR800A1376 DIRECT
HONEYWELL VR800A1384 DIRECT
HONEYWELL VR800A1400 DIRECT
HONEYWELL VR800A1418 DIRECT
HONEYWELL VR800A1582 DIRECT
HONEYWELL VR800E1005 DIRECT
HONEYWELL VR800E1013 DIRECT
HONEYWELL VR800H1306 DIRECT
HONEYWELL VR800M1255 DIRECT
HONEYWELL VR801A1003 DIRECT
HONEYWELL VR801A1011 DIRECT
HONEYWELL VR801D1031 DIRECT
HONEYWELL VR810A1010 DIRECT
HONEYWELL VR810A1028 DIRECT
HONEYWELL VR810A1036 DIRECT
HONEYWELL VR810A1044 DIRECT
HONEYWELL VR810A1051 DIRECT
HONEYWELL VR810A1069 DIRECT
HONEYWELL VR810A1077 DIRECT
HONEYWELL VR810A1085 DIRECT
HONEYWELL VR810A1093 DIRECT
HONEYWELL VR810A1101 DIRECT
HONEYWELL VR810B1000 DIRECT
HONEYWELL VR810B1018 DIRECT
HONEYWELL VR810C1016 DIRECT

* DIRECT refers to a replacement option designed to the OEM specifications for best possible fitment.
* UNIVERSAL replacement options are designed as a functional equivalent and may require adapters, jumpers, switches, etc. (typically provided) in order to function as the original OEM device.

Disclaimer. All recommended replacements in the cross-reference database have been assembled from publicly available resources created by manufactures of HVAC, controls and plumbing products. Stockpile Express assumes no liability in connection with the information contained and makes no guarantees regarding the accuracy of such information. Final selection of a replacement product is the responsibility of the buyer.

TECHNICAL DOCUMENTS

Specification Sheet
Installation Manual
Brochure
