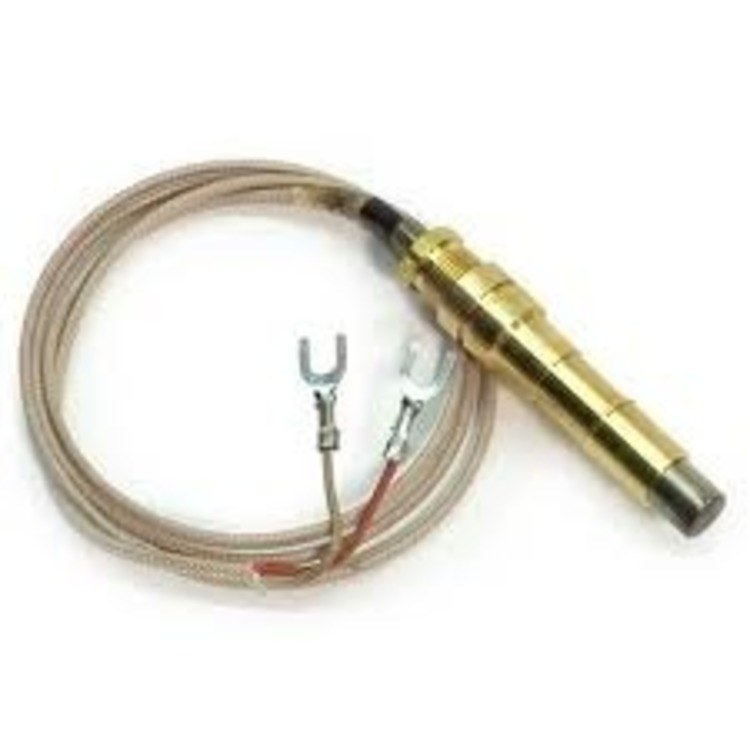

Robertshaw 1950-001Thermopile 1950 Gas with PG9 Pilot Adapter 36 Inch

Product Overview

The Robertshaw 1950 and 1951 Series Thermopiles lead the industry for gas appliance applications. Their primary function is to ensure a standing pilot light is operative so that on a call for heat, the main burner gas will be properly ignited. Thermopiles are placed in gas applications to detect the existence of a flame for safety purposes by shutting off the potential gas flow to a burner. A thermopile is the assembly of many thermocouples to increase the mV output.

• Robertshaw thermopiles have two types of connections: coaxial and two wire spade connectors
• The 1950 series thermopiles, also known as TP-75, are two wire spade connectors
• The 1950 and 1951 series thermopiles (pilot generators) are designed for use on self-powered gas control systems
• They can be used to replace similar competitive devices
• Includes PG9 pilot adaptors
• Easy burner installation with attached threaded nut
• Stainless steel outer jacket for long life and resistance to heat blistering
• Combination of copper and nickel alloys for good electrical conductivity
• Mica washer to insulate from shorting conditions
• Tinnerman clip included
• Various lengths available for multiple applications
