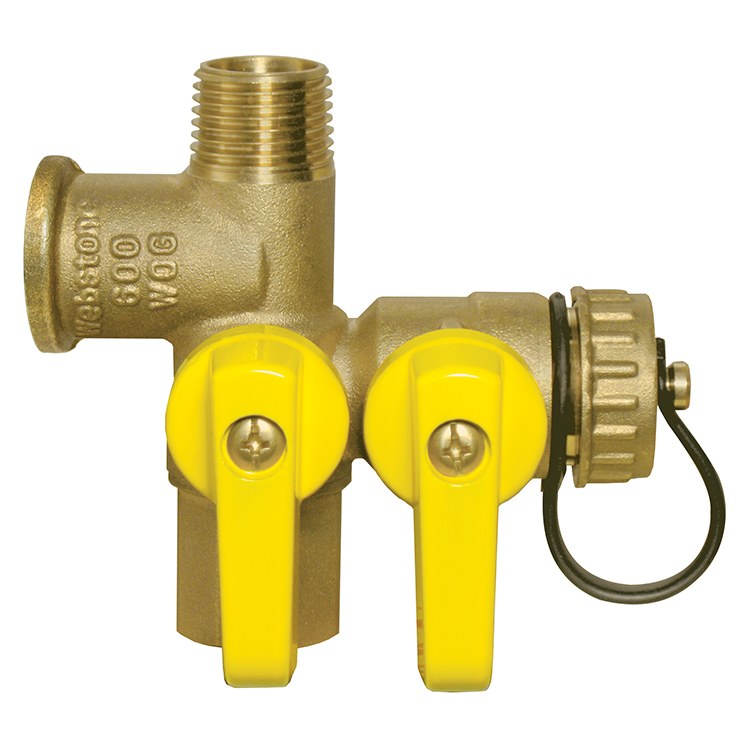

Webstone 41672Pro-Pal 4167 Series Expansion Tank 1/2" Pro Service Valve with FIP x MIP x FIP x Hose

Product Overview

Designed for Residential or Light Commercial Use with Water or Oil

The Pro-Pal 4167 Series Expansion Tank Pro Service Valve isolates and drains an expansion tank in a closed loop hydronic heating system. A blowout-proof stem actuates the valve, which features an adjustable packing gland. Lets you easily install, isolate, drain and replace any expansion tank, and quickly connect the entire system to the cold water feed. The valve replaces five components to save you up to 36 minutes in installation and repair time, while eliminating four leak paths.

• Full port forged brass ball valve
• Hi-flow hose drain
• Maximum operating pressure: 600 CWP
• Body: brass
• Seat: PTFE
• Handle: enamel-coated aluminum
• Threaded ends comply with ANSI B1.20.1.
• Certified to NSF/ANSI 61

Product Details

Brand	Webstone
Size	1/2IN
End Connection	Female x Male x Female x Hose
Material	Brass
Port Type	Full Port
Pressure	600WOG-PSI
Seal Material	PTFE
Temperature	350DEG F
End to End Distance	3-3/8IN
Application	Residential or Light Commercial Use with Water or Oil
