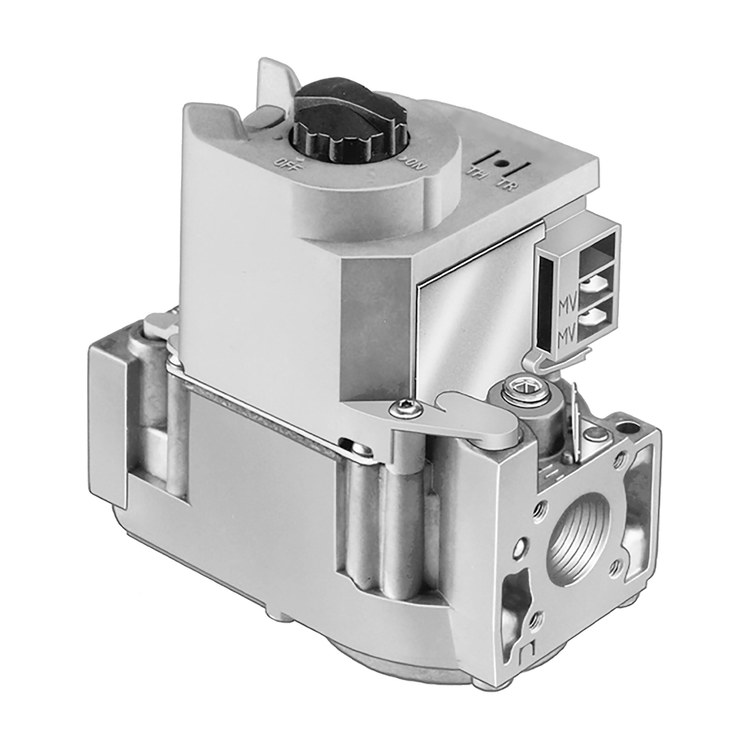

Resideo VR8205A2024/U
Gas Valve VR8205 Standard Opening Direct Ignition 3.5 Inch WC 1/2 x 1/2 Inch NPT 1/2 Pounds per Square Inch 0-175 Degrees Fahrenheit
Sign In for price In Stock
QUANTITY
Same Day Shipping on orders placed by 4pm EST
Product Overview
Combination gas controls for use with hot surface/direct spark systems in 24 VAC, gas-fired appliances with capacities from 30 to 415 cfh.
- Provide two automatic valves
- Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
- Diaphragm-operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted
- Meets codes requiring dual safety shutoff
- All adjustments, wiring connections and pilot outlet are accessible from top of control
- On-off lighting sequence
Product Details
| Brand | Resideo |
|---|---|
| Product Type | Standard Opening Direct Ignition 3.5IN WC |
| Size | 1/2x1/2IN |
| End Connection | NPT |
| Pressure | 1/2PSI |
| Temperature | 0-175DEG F |
| Fuel | Natural Gas |
| Application | Residential Gas Control System |
| Width | 4-1/8IN |
| Height | 4-15/16IN |
| Depth | 2-11/16IN |
Cross Reference
Resideo VR8205A2024/U is a suggested replacement option for the identified OEM part numbers below:
| OEM MANUFACTURER | OEM PART NUMBER | SUBSTITUTION TYPE* |
|---|---|---|
| ESSEX | SX345LSP(DSI) | DIRECT |
| HONEYWELL | V8205A2013 | DIRECT |
| HONEYWELL | V8205A2123 | DIRECT |
| HONEYWELL | VR8205A2123 | DIRECT |
| HONEYWELL | VR8205A2172 | DIRECT |
* DIRECT refers to a replacement option designed to the OEM specifications for best possible fitment.
* UNIVERSAL replacement options are designed as a functional equivalent and may require adapters, jumpers, switches, etc. (typically provided) in order to function as the original OEM device.
Disclaimer. All recommended replacements in the cross-reference database have been assembled from publicly available resources created by manufactures of HVAC, controls and plumbing products. Stockpile Express assumes no liability in connection with the information contained and makes no guarantees regarding the accuracy of such information. Final selection of a replacement product is the responsibility of the buyer.
