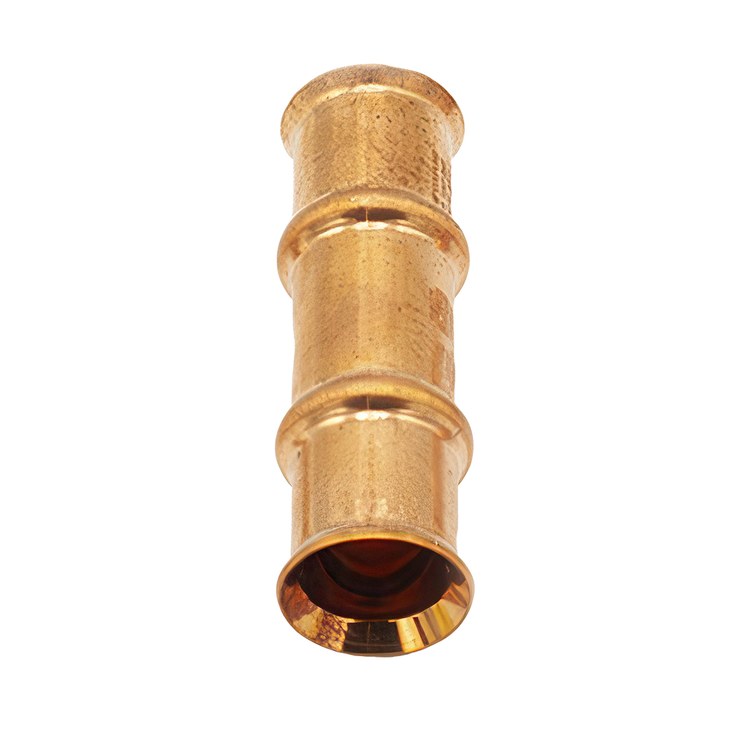

Refrigeration Press 30111010001115/8" Copper Coupling with Stop Press x Press

Product Overview

Ensure a Tight Fit on Pipe Connections.

RLS copper pressed fittings are designed specifically for use with refrigerant. These fittings are also annealed so that when they are pressed, the joint hardens into place. This copper coupling is made of refrigerant-grade copper per ASTM-B75 or ASTM-B743. It features 5/8" press x press end connections.

Approved for use with the following refrigerants: R-134A, R-404A, R-407A, R-407C, R-407F, R-407H, R-410A, R-417A, R-421A, R-422B, R-422D, R-424A, R-427A, R-434A, R-437A, R-438A ,R-448A, R-449A,R-450A, R-452A, R-453A, R-456A, R-507A, R-513A, R-513B, R-718, Ethylene Glycol, R-22.

• Eliminates brazing process using flame-free press tool for safer work environment
• Fast and reliable connections to save time and money
• Maximum Rated Pressure (MRP): 700 psi
• Continuous Operating Temperature: 250 degrees F
• O-Ring Material: HNBR
• Made in the USA

Product Details

Brand	Refrigeration Press
Product Type	Coupling with Stop
Material	Copper
Size	5/8IN
End Connection	Press x Press
Part Number	3011101000111
Pressure	700PSI
Temperature	250DEG F
Application	Flame-Free Refrigerant Fittings
