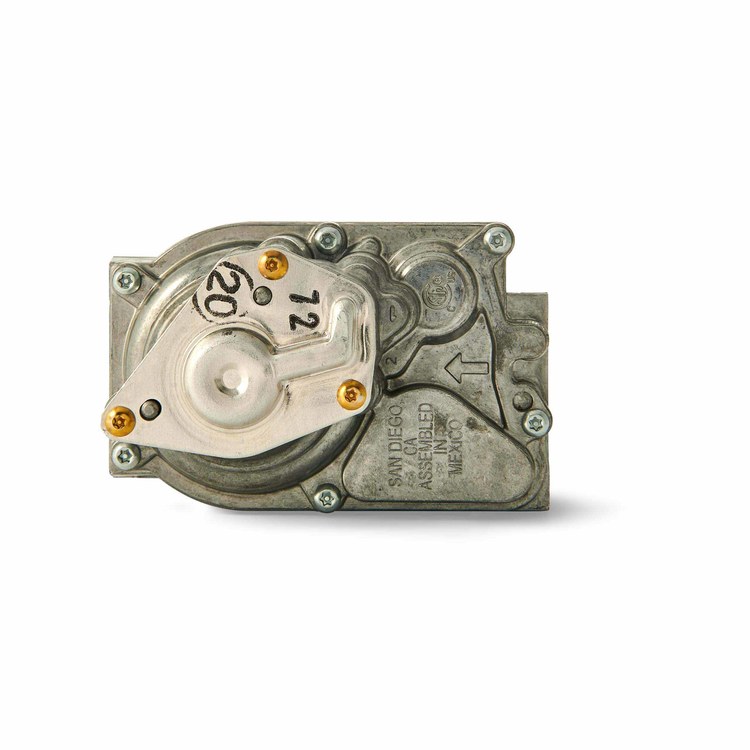

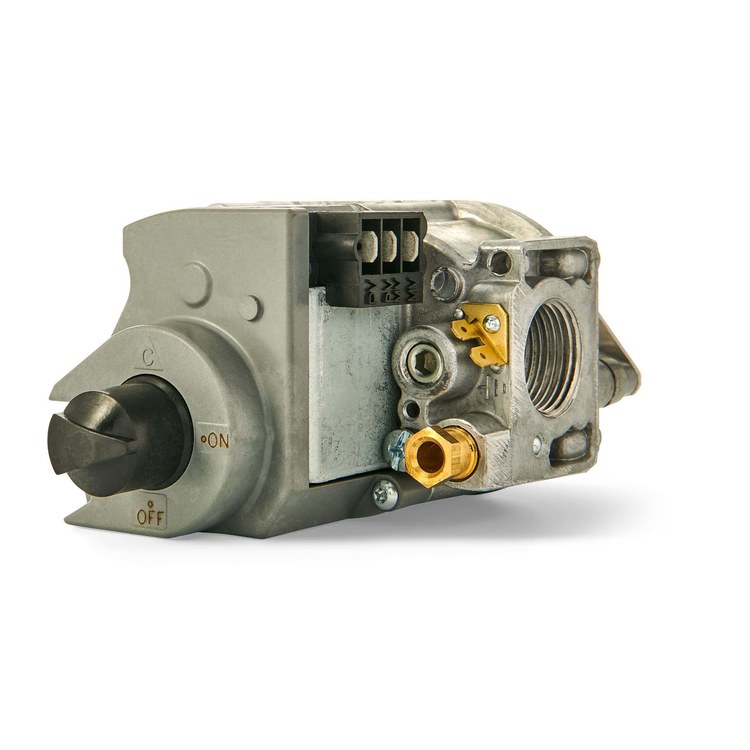

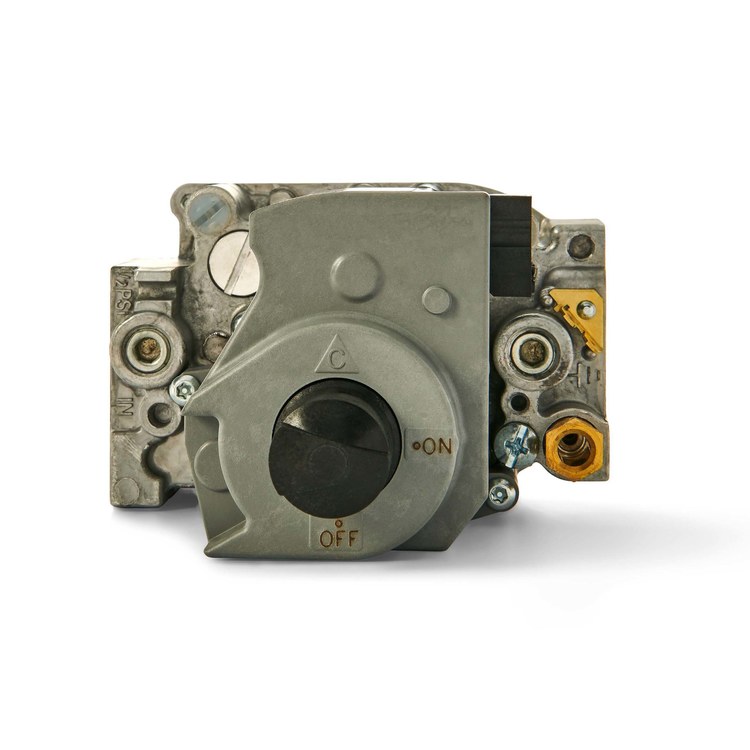

Resideo VR8304M4507/U Gas Valve

Gas Valve VR8304 Intermittent Pilot 3/4 Inch NPT Standard Opening 1/2 Pounds per Square Inch 24 VAC 1 Stage 300K BTU Natural Gas for Residential Gas Control System

QUANTITY

Same Day Shipping on orders placed by 4pm EST

Product Overview

Combination gas control for use in 24 VAC gas-fired, intermittent pilot appliances with capacities from 30 to 415 cfh.

Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment

Use with S86-F/H, S860D, S8600-F/H, S8610 and S90-A/B control modules

Compact design

Provide two automatic valves

Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends

Diaphragm operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted

Meets codes requiring dual safety shutoff

Natural to LP and LP to natural conversion kits available for standard and slow opening gas valves

All adjustments, wiring connections and pilot outlet are accessible from top of control

Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure

Compatible with ECO connector

On/off lighting sequence

Straight-through body pattern

0 to 90 deg in any direction from the upright position of the gas control knob mounting

3-1/2 in WC pressure regulator setting

Brand	Resideo
Product Type	Intermittent Pilot
Size	3/4IN
End Connection	NPT
Port Type	Standard Opening
Pressure	1/2PSI
Voltage	24VAC
Number of Stages	1
BTU	300K BTU
Temperature	-40 To 175DEG F
Fuel	Natural Gas
Application	Residential Gas Control System
Width	4-1/16IN
Height	5-3/8IN
Depth	2-11/16IN

Brand

Resideo

Product Type

Intermittent Pilot

Size

3/4IN

End Connection

NPT

Port Type

Standard Opening

Pressure

1/2PSI

Voltage

24VAC

Number of Stages

BTU

300K BTU

Temperature

-40 To 175DEG F

Fuel

Natural Gas

Application

Residential Gas Control System

Width

4-1/16IN

Height

5-3/8IN

Depth

2-11/16IN

Cross Reference

Resideo VR8304M4507/U is a suggested replacement option for the identified OEM part numbers below:

OEM MANUFACTURER	OEM PART NUMBER	SUBSTITUTION TYPE^*
HONEYWELL	V4227A1026	DIRECT
HONEYWELL	V4249A1038	DIRECT
HONEYWELL	V4298A1020	DIRECT
HONEYWELL	VR8304M4010	DIRECT
HONEYWELL	VR8304M4036	DIRECT


HONEYWELL	VR8304M4044	DIRECT
HONEYWELL	VR8304M4515	DIRECT
HONEYWELL	VR8304M4804	DIRECT
HONEYWELL	VR8440A1003	DIRECT
HONEYWELL	VR8440A1011	DIRECT
HONEYWELL	VR8440A1029	DIRECT
HONEYWELL	VR8440A1037	DIRECT
HONEYWELL	VR8440A2027	DIRECT
HONEYWELL	VR8440A4007	DIRECT
HONEYWELL	VR8440A4015	DIRECT
HONEYWELL	VR8440A4023	DIRECT
HONEYWELL	VR8440A4031	DIRECT
HONEYWELL	VR8440A4049	DIRECT
HONEYWELL	VR8440A4056	DIRECT
HONEYWELL	VR8440A4064	DIRECT
HONEYWELL	VR8440A4205	DIRECT
HONEYWELL	VR8440A6002	DIRECT
HONEYWELL	VR8440A6010	DIRECT
HONEYWELL	VR8440A6028	DIRECT
HONEYWELL	VR8440A6044	DIRECT
HONEYWELL	VR8440A6051	DIRECT
HONEYWELL	VR8440A6069	DIRECT
HONEYWELL	VR8440A6077	DIRECT
HONEYWELL	VR8440H2038	DIRECT
HONEYWELL	VR8440H2046	DIRECT
HONEYWELL	VR8440H3036	DIRECT
HONEYWELL	VR8440K2018	DIRECT
HONEYWELL	VR8440K2026	DIRECT
HONEYWELL	VR8440K3016	DIRECT
HONEYWELL	VR8440K3073	DIRECT
HONEYWELL	VR8440K4048	DIRECT
HONEYWELL	VR8440M1026	DIRECT
HONEYWELL	VR8440M1042	DIRECT
HONEYWELL	VR8440M4004	DIRECT
HONEYWELL	VR8440M4020	DIRECT
HONEYWELL	VR8440M4038	DIRECT
HONEYWELL	VR8440M4046	DIRECT
HONEYWELL	VR8440M4061	DIRECT
HONEYWELL	VR8440M4087	DIRECT
HONEYWELL	VR8440M6017	DIRECT
HONEYWELL	VR8440M6033	DIRECT
HONEYWELL	VR8440M6041	DIRECT
HONEYWELL	VR844A1044	DIRECT
HONEYWELL	VR844A1069	DIRECT
HONEYWELL	VR844A1077	DIRECT
HONEYWELL	VR844A1093	DIRECT
HONEYWELL	VR844M1030	DIRECT
HONEYWELL	VR844M1055	DIRECT
HONEYWELL	VR844M1139	DIRECT
HONEYWELL	VR844M1212	DIRECT
HONEYWELL	VR844M1253	DIRECT
HONEYWELL	VR844M1279	DIRECT
HONEYWELL	VR8450A4113	DIRECT
ROBERTSHAW	7000BDER-S7A	DIRECT

View More +

* DIRECT refers to a replacement option designed to the OEM specifications for best possible fitment.
* UNIVERSAL replacement options are designed as a functional equivalent and may require adapters, jumpers, switches, etc. (typically provided) in order to function as the original OEM device.

Disclaimer. All recommended replacements in the cross-reference database have been assembled from publicly available resources created by manufactures of HVAC, controls and plumbing products. Stockpile Express assumes no liability in connection with the information contained and makes no guarantees regarding the accuracy of such information. Final selection of a replacement product is the responsibility of the buyer.
